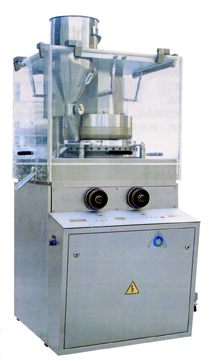

   VRP-1000 Series of Rotary Tablet Presses are the mid-range mass production capacity, which are widely used in the pharmaceutical, herbal, nutriceutical, chemical and food industries to produce all types of round tablets and geometrical shapes tablets. It is excellent for manufacturing herbal tablets.
   The pressing chamber is utterly separated with the gear system. The parts contacting with tablets are made of stainless steel or the surface of those parts are polished and sterilized. The chamber is also sealed with organic glass for better working environment.
   The gear system, the trace and the major friction parts are fully lubricated by the continual and concentrated lubrication device.
   It's user friendly built, easy to monitor, adjust the operating pressure, thickness, feeding, speed adjustable hand wheels, indicating lights and other control buttons are conveniently located.
   The design of VRP-1000 series is rugged, durable and efficient. Most of parts are interchangeable in these series, so it's easy to operate, maintain and change spare parts. The punches and dies are TSM (IPT) international standard.
   All contacting material parts and overall exterior of the machines are made of high quality stainless steel to meet the GMP Standard. Custom engraving on tablets are available upon request.



VRP-1036: BB Type Tooling;

VRP-1029: B Type Tooling;

VRP-1024: D Type Tooling.



 Model

VRP-1036

VRP-1029

VRP-1024

VRP-1034

 Station

36

29

24

34

 Max. Pressure (kN)

80

80

80

60

 Max. Depth of Fill (mm)

18

18

18

15

 Max. Diameter of Tablet (mm)

13

18

22

13

 Production Capacity (tablets/hr)

97,000

78,000

64,000

92,000

 Motor (kW)

4 kW (45 rpm)

 Height with Material Vessel (mm)

1,580

1,540

 Height without Material Vessel (mm)

1,800

1,780

 Machine Foot-print (mm2)

930 x 950

 Weight (kg)

1,400
