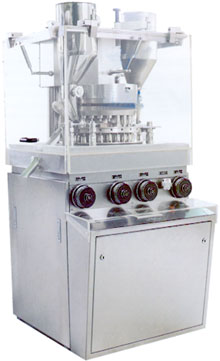

  MID-SPEED DOUBLE LAYER PRESS



This model designed to press the various kinds of granular materials into tablets--with the most outstanding advantage of being able to produce irregular tablets with widely different geometrical shapes, such as double layer tablets, ring like tablets and double side engraved tablets. It is one of the most affordable rotary tablet presses in the industry with the most diverse pressing capabilities in its class. A total of 23 units of punches and dies can be installed in the turret, with the punches and dies consisting of two detachable sections. In one cycle of the rotation, 23 tablets will be produced.
   This model is in compliance with the current GMP standard on the production itself and management of the pharmaceuticals as a whole. The compression compartment is entirely separated from the driving mechanisms. All parts in contact with the pharmaceutical products are made of stainless steel or with the surface being treated specially for non-toxicity and corrosion proof. The compression compartment is enclosed with transparent organic glass, to prevent contamination. The compression area can be accessed from the four sides, with all surfaces being smooth and easy to clean. The Model VDP-23 has a centralized lubrication system for the driving system, tracks and main frictional parts to be adequately lubricated--to reduce the noise, wear and maintenance cost.
   The electric control component adopts the PLC Touch Screen Control Technology, with the functions of setting up of the main compression and main compression override stop. This machine is provided with the function of automatic diagnosis, which can display and provided troubleshooting during operations. Through the display, the defective position can be traced and located rapidly, to increase the operation efficiency and maintenance.


















 Specification for model VDP-23

 Stations

 23

 Maximum Compression

 80 KN

 Max. Diameter of Tablet

 20 mm

 Max. Filling Depth

 18 mm

 Max. Thickness of Tablet

 9 mm

 Diameter of the Upper/Lower Shank

 32 mm

 Length of the Upper Shank

 175 mm

 Length of the Lower Shank

 180 mm

 Diameter of the Die

 36 mm

 Thickness of the Die

 25 mm

 Diameter of Circle of Central Pitch
 of Upper/Lower Punches on the Turret

 320 mm

 Rotary Speed of the Turret

 10 - 40 RPM

 Capacity of the Tablets

 55,000 tablets/hour

 Occupied Area

 930 x 950 mm2

 Height of the Machine

 1850 mm

 Motor Power

 4 kW

 Net Weight of Machine

 1500 kg
