Vanguard Double-Press Rotary Tablet Press

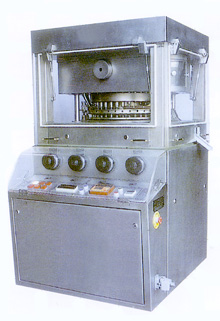

VRP-35A/B Double-Press Tablet Press

Application:


   This machine is a double-press type, continuous automatic tablet press for pressing granular raw materials into round tablets. It is mainly used in pharmaceutical, herbal, nutraceutical, food and chemical industries.

Features:

The machine is fully enclosed. The material of the cover and the inside table face is stainless steel. The turret face is specially disposed keeping the luster of the face and prevent the cross pollution, meeting the cGMP requirement.

It has transparent windows so that press condition can be observed clearly and the window can be opened for cleaning and maintenance.

The speed adjustment of the driver is controlled by the frequency conversion device.

All the drive devices are located inside the machine so keep the machine clean.

The hydraulic system can assure the stable of the system.

A overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs, the machine stops automatically.

This machine also has electronic driver and other safety protection device which can be adjusted and operated when running.

The punches and dies are also applicable to Model VRP19, VRP33 and VRP35.

VRP-35B added Pre-Compression Feature.






 Specification for model VRP-35A(B)

 Punches and Dies

 35 sets

 Max. Pressure

 60 kN

 Max. Diameter of Tablet

 13 mm

 Max. Depth of Filling

 15 mm

 Max. Thickness of Tablet

 6 mm

 Turret Speed

 14 - 36 rpm

 Capacity

 150,000 pieces/hr

 Motor

 3 kw  960rpm

 Dimension

 910 x 1120 x 1650 mm

 Net Weight

 2300 kg
