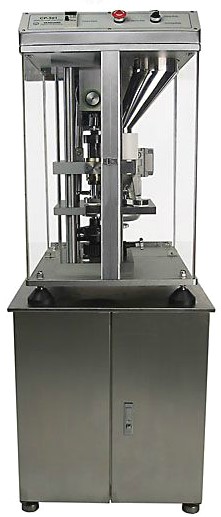

  Model CP-501 Advanced Single Tablet Press:











Model CP-501 Advanced Single Tablet Press is ideal for pressing all sizes and shapes of tablets up to 25mm. This is a premier single punch tablet press designed and built to meet the strict demand by pharmaceutical R & D and similar research laboratories. It has a 5 ton compaction force and able to press O-ring tablets. It is also great for chemical, herbal, food, confection, nutraceutical and other related industries. It is a mini heavy-duty bench top with the fastest production capacity in its class. It has one set of round punches and die installed in the machine; and changing punches and dies are never been easier.



High precision of filling, low-noise, low energy consumption and smooth operation. The minimum consumption of lab material is just 200g. It is a rugged designed, reliable and efficient for the lab used for research and development in hospital and in industry and for small-scale production.





Main Features:

*  Pharmaceutical Grade—cGMP Standard

*  One inch thick solid S.S. Die Table
*  New Upper Punch Safety Feature

*  All contact parts are highly polished S.S.

*  H4-Side Plexi-glass with Safety Interlocks

*  Excellent for pressing O-Ring Tablets

*  5-Ton Compaction Force

*  Variable Speed Control

*  Available in single, double or triple punch
    heads

*  Rugged & compact designed

*  Best price and quality in its class

*  All high quality stainless steel construction

*  One-year industry standard warranty

*  Affordable custom design punches & dies

*  Produces all sizes & shapes of tablets up
    to 25mm





 Main Technical Parameters

 Number of Punch Heads

1

2

3

 Max. Output (Tablets/hr)

3,600

7,200

10,800

 Max Tablet Diameter

0.9842 in / 25 mm

0.3937 in / 10 mm

0.2756 in / 7 mm

 Max Depth of Fill

20 mm 0.7874 in

 Max Tablet Thickness

0.3149 in / 8 mm

 Max Compression Force (kN)

50

 Rated Power (kW)

1.5

 Power Supply

AC/220V/60Hz/1Ph

 Overall Dimension (L x W x H)

23 x 20 x 33 in / 580 x 500 x 830 mm

 Net Weight

330 lbs / 150 kg
