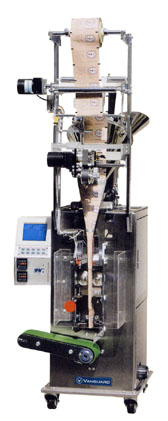

VXK-45 Shown Above
|
VXK-45 Vertical FFS
Powder Packaging Machine
Features:
- Color LCD Screen Display all operating functions.
- Easy tearing cut feature is included.
- Automatic bag-making, measuring, filling,
sealing, cutting and counting.
- The Photoelectric System -- no error of
compensation or cumulative error. It will identify the pattern and cut
immediately to prevent any single wastage of material.
- The length of the bag can be adjusted using
digital control system.
- ACS (Automatic Control System) to ensuring
pre-print and cutting position.
- Equipped with electronic temperature
control systems for sealing in transverse and longitudinal directions,
respectively.
- Auger filler system
- Precision volumetric filling consisted of
internal and external cups, and the volume can be adjusted within the rated
range using digital control method.
- All stainless steel construction
meet cGMP standard.
Option:
- Thermal hot stamp printing system with 1~3 rows of
adjustable ink rollers and ribbons.
- Automatically stops when no product or
packing material.
- 4-Side Sealed Integrations
Application:
Soy milk powder, flour
powder, herbs powder,
pharmaceutical powder, agricultural,
chemical powder and other powder materials.
Packing Materials:
Paper/PE, PT/PE, PET/PE, BOPP
film, polyester, aluminum paper and other sealable laminates complex films.
| Model Name |
VXK-45 |
| Capacity |
Up to 45
bags/min |
| Bag Size |
(L) 40 - 150 mm
(W) 40 - 100 mm |
| Filling
Range |
0.2 - 150 cm3 |
| Power |
220V or
110V, .95 kW |
| Weight |
165 kg or 365
lbs |
| Dimension (Lx W x H) |
22" x
28" x 59" |
|
|
|
