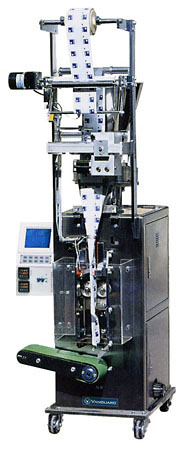

VXK-100 Granular Pouch Packaging
- Color LCD Screen Display all operating
functions.
- Easy tearing cut feature is included.
- Automatic bag-making, measuring, filling,
sealing, cutting and counting.
- The Photoelectric System -- no error of
compensation or cumulative error. It will identify the pattern and cut
immediately to prevent any single wastage of material.
- The length of the bag can be adjusted using
digital control system.
- ACS (Automatic Control System) to ensuring
pre-print and cutting position.
- Equipped with electronic temperature control
systems for sealing in transverse and longitudinal directions, respectively.
- Precision volumetric filling consisted of
internal and external cups, and the volume can be adjusted within the rated
range using digital control method.
- All stainless steel construction meet cGMP
standard.
Options:
- Thermal printing system with 1~3 rows of
adjustable ink rollers and ribbons.
- Automatically stops when no product or
packing material.
- 4-Side Sealed Integrations
Application:
Tea, coffee, granule, sodium glutamate, granulated
sugar, solid drink granule, seed, desiccant, non-sticky granular and free flow
products.
Packing Materials: Paper/PE, PT/PE, PET/Plated AL/PE, PET/PE, BOPP
film, tea-leaf filter paper and other adhesive laminates complex films.
Model Name |
VXK-100 |
Capacity |
40 -
110bags/min |
Bag Size |
(L) 40 - 130 mm
(W) 35 - 85 mm |
Filling
Range |
0.3 - 60 cm3 |
Power |
220V or 110V, 0.7
kW |
Weight |
165 kg (365 lbs) |
Dimension
(Lx W x H) |
550 x 720 x1500mm ( 22" x 28" x 59" ) |
|
