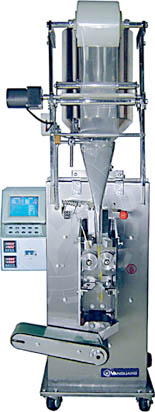

VXL-55 Vertical FFS For Semi-Liquid/Paste Packaging


Features:
  • Color LCD Screen Display all operating functions.
  • Easy tearing cut feature is included.
  • Automatic bag-making, measuring, filling, sealing, cutting and counting.
  • The Photoelectric System -- no error of compensation or cumulative error.  It will identify the pattern and cut immediately to prevent any single wastage of material.
  • The length of the bag can be adjusted using digital control system.
  • ACS (Automatic Control System) to ensure pre-print and cutting position.
  • Equipped with electronic temperature control systems for sealing in transverse and longitudinal directions, respectively.
  • Stainless steel pump is included, and the volume can be adjusted within the rated range using digital control method.
  • All stainless steel construction meet cGMP standard.

Option:

  • Thermal hot stamp printing system with 1~3 rows of adjustable ink rollers and ribbons.
  • Automatically stops when no product or packing material.

Application:

  • Suitable for packing oil cream, viscosity liquid, paste; and other agricultural, chemical and cosmetic products.

Packing Materials:

PET/Plated AL/PE, PET/PP, BOPP film, nylon and  other adhesive laminates complex films.

 Model Name

  VXL-55

 Capacity   Up to 55 pouches/min
 Pouch Size  (L)  40 - 130 mm
 (W) 40 - 70 mm
 Power  110V or 220V, 0.7 kw
 Filling Range

 1 - 100 ml

 Weight 165 kg ( 365 lbs)
 Dimension (L x W x H)  22" x 28" x 59"
