Vanguard Complete Blister Packaging Line

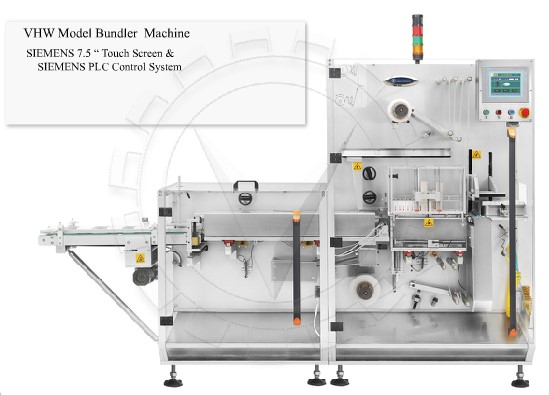

Model VHW-20 Shrink Bundling Machine

VHW-20 Shrink Bundling Machine can assemble a stack of carton boxes and then wrap them with PVC or PE film. After heating the film, the packed cartons boxes lare grouped together then . The machine is widely applied in pharmaceutical, food and light industry. The machine is cylinder driven and uses a photo-detection system to drive all parts to work in sync. The machine’s compact structure is easy to adjust with high quality and reliable operation.


• The machine is equipped with auto-feeding function.
• The machine has film cutting protect switch.
• The number of stacked cartons can be designed by your requirement.
• The heating temperature can be set according to the product’s or film’s need.
• The speed of transferring belt can be regulated to meet different packing capacities.

Carton Packing Range:
Min size (L×W×H) 72mm×33mm×12mm
Max size(L×W×H) 185mm×122mm×92mm

Packing Material:

PVC, PE film (thickness: 0.02-0.035mm)

Water consumption

0.1m3/h

Air consumption

<30m3/h (pressure 0.6-0.7 Mpa)

Capacity:

20 package/min. (12 cartons/package)

Core inner diameter 100 mm Max. diameter: 300 mm
Thickness: 0.02-0.035 mm
Max. width 240 mm
Machine dimension 3800” x 1300” x 1750”
Main Machine weight 2200 lbs.
