Vanguard Complete Blister Packaging Line

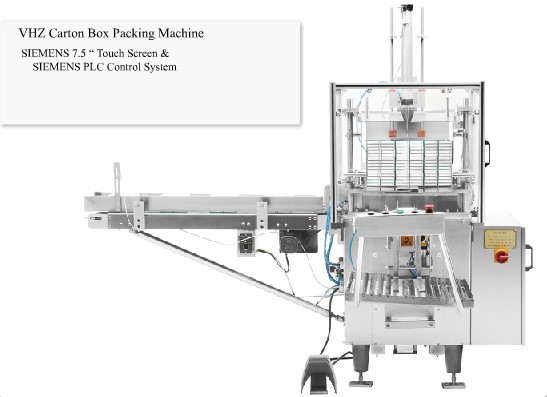

VHZ-120B Carton Box Packing Machine is commonly used in a wide range of applications in pharmaceutical, food, cosmetics, nutraceutical and chemical industries. It can pack cartons or cases into boxes automatically.
The VHZ-120B is cylinder driven and uses a photo-detection system to drive all parts to work in perfect harmony. The machine’s compact structure is easy to adjust with high quality and reliable operation that conforms with FDA and cGMP Standards.

Packing Material:
Corrugated Paper

Production capacity:

Max. 120 boxes/hr.

For packed products Min size (L×W×H): 50mm×20mm×12mm
Max size (L×W×H): 330mm×500mm×65mm
For cartons (inner) Min size (L×W×H): 185mm×95mm×115mm
Max size (L×W×H): 560mm×340mm×390mm

Machine dimension

2200” x 2150” x 1900”

Main Machine Weight 1210 lbs
