Vanguard Pharmaceutical Machinery, Aluminum-Plastic Automatic Blister Packing Machine

Content on this page requires a newer version of Adobe Flash Player.

Get Adobe Flash player

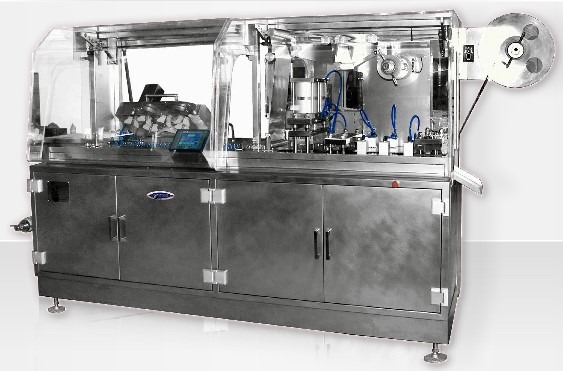

Model PBM-250C is a mid speed production blister packing machine designed to pack all types of capsules, tablets, softgels, injection solution, syringe and other small laboratory or hospital preparation products. It can also pack small products in different types of clamp shell packages. It is widely used in the pharmaceutical, herbal, food and other related industries. It is suitable for packing with aluminum/PVC, paper/plastic laminated materials.
   Its functions are aluminum foil automatic feeding, upper and lower cobweb male and female joining, multistage cylinder heat sealing, automatic indenting, batch number printing and aluminum alloy double heating.

Other new features are as follows:
  • The spaces between the parts of shaping, heat sealing and cutting can be adjusted as required. It is excellent for packing medicines of various sizes with high precision and efficiency.
  • It is drawn by a mechanical hand with an adjustable travel and easy and reliable operation.
  • It has a planned-hear speed reducer with low noise and long service life.
  • It's easy to replace and change parts accurately. The frequency control of motor speed has high performance and efficiency with a cutting of 35 times a minute.
  •  Cutting frequency  20 - 40 times a minute
     Output capacity  Up to 7200 blister packs per hour
     Max shaping area  240(9'') x 110(4'') mm
     Stroke (mm)  40 - 120
     Standard sheet (mm)  80 x 57
     Air pressure  0.4MPa - 0.6MPa
     Power  1.5 kw
     PVC hard pieces (mm)  0.15 - 0.5 x 250
     PTP Aluminum foil (mm)  0.02 - 0.35 x 250
     Dialysis paper (mm)  50 - 100g x 250
     Mould cooling  Running water or back water
     Dimensions (mm)  2700(106'') x 890(35'') x 1450(57'')
     Weight  1300kg (2866lbs)
