VFX Series

Applications

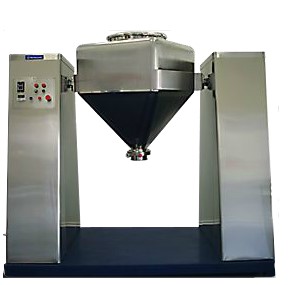

   Model VFX Series Square Cone Blender is commonly used by prestigious pharmaceutical companies, globally.  It is designed for ultra uniform mixing of wide range of products in the pharmaceutical, chemical, metallurgical, food, light and related industries. This type of blender has a three dimensional mixing method for high efficiency mixing unlike other 2-dimensional mixers.



Working Principle


   Materials are charged into a closed square-cone mixing barrel, the symmetrical axes of hopper and the axes of rotating shaft form an included angle, materials with different constituents are strenuously rolling over in the closed hopper and producing high shear to achieve the best effect of mixing thru 3-dimensional action.

Features



The whole machine features novel design, compact structure, and good appearance, the evenness of mixing reaches 99%, and the volume charge coefficient reaches 80% compare to 40%-50% of other blenders.

Low rotating height, smooth running, reliable performance, easy operation.

Highly polished inner and outer surfaces of the barrel, no hidden corner, easy to discharge materials, easy to clean, no cross contamination, conforming to the requirement of cGMP.  Available in both 304 & 316 S.S.




Main Technical Specifications

 Model

 VFX-400

 VFX-800

 VFX-1000

 VFX-1500

 VFX-2000

VFX-3000

 Overall Capacity (L)

 400

 800

 1000

 1500

 2000

 3000

 Max. Load Mass (L)

 280

 560

 700

 1060

 1400

 2100

 Max. Load Mass (kg)

 200

 400

 500

 750

 1000

 1500

 Rotational Speed of Main Shaft
 (R/Min)

 14

 12

 12

 10

 8

 6

 Motor Power (kW)

 1.5

 2.2

 3

 4

 5.5

 7.5

 Diameter of Feeding (mm)

 500

 500

 500

 500

 500

 500

 Diameter of Discharging (mm)

 150

 150

 150

 150

 200

 200
 Overall Dimensions
 (dynamic)
 Length (L) mm  2130  2400  2650  3100  3300  3600
 Width (W) mm  1430  1650  1820  1940  2240  2400
 Height (H) mm  2175  2400  2560  2700  3000  3300
 Weight of Overall Unit (kg)  700  1000  1200  1600  2000  3000
