TOP SPRAY GRANULATOR

Features

VPGL-B is the second generation of the top spray granulator. It not only covers all the basic functions of top spray granulator, but also solves the problem solidifying considerable
volume liquid. In practice, it is the most favorable equipment for making granules of natural herbs and raw herbal formulas.


The characters of the PGL- B:

  • Special Tri-flow spray nozzle
  • Higher dry efficiency than FL-B
  • Significantly reduce excipients and binders
  • Shorter time of agglomeration
  • Dust- free closed system
  • Two separate filter-shaking system
  • Continuous spray process
  • Measure up GMP standards

Top Spray Binding Liquid or Fluid Extract on Powder to make granules by Aqqlomeration.



VPGL-B Main parameter (as reference)

Specification

Model
Specification
VPG-3B
VPG-5B
VPG-10B
VPG-20B
VPG-40B
VPG-80B
VPG-120B
Material Container
Volume (L)
30
45
100
220
420
670
1000
Dimension (mm)
400
550
700
1000
1200
1400
1600
Liquid proportion (g/cm3)
less than 1.3
evaporative effiency (Kg/h)
2-4
4-6
6-15
15-25
40-60
60-100
100-140
Steam
Pressure (Mpa)
0.4-0.6
Steam flow (Kg/h)
25
50
120
160
240
300
380

Compression air
Pressure (Mpa)
0.6
Steam flow (m3/min)
0.6
0.6
0.9
0.9
1.1
1.1
1.6
Blower (Kw)
2.3
4
5.5
7.5
18.5
22
30
Noise (db)
less than 75 db

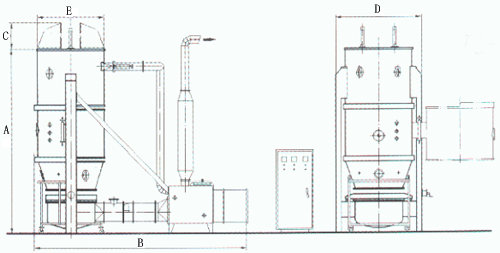

Tower Dimension (mm)

A
2320
2380
2600
3200
3844
4240
5159
B
1200
1400
1350
1800
2450
2550
3400
C
220
280
380
480
500
520
600
D
700
970
1100
1320
1420
1640
2000
E
400
550
700
1000
1200
1400
1600
