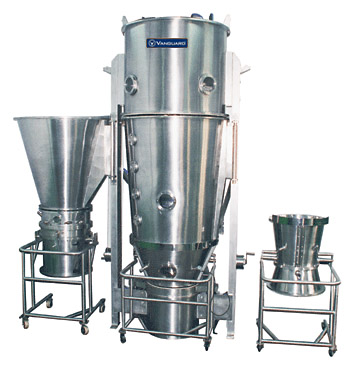

  Multi Function Fluid-Bed   Granulator and Coater



Vanguard's VPL Series Fluid Bed Granulators and Coaters have multi-functional systems. The top spray system is the third generation of the top spray granulator. It is more efficient than most common fluid bed granulators in the industry. This type of advanced series equipment integrates three fluid bed processes including the top-spray granulating, bottom spray coating, tangent spray pelletting and coating so that it achieves both technological and economical advantages in solid dose processing and other applications.

Features:

  • High efficient dryer

  • Granulator meeting different requirement

  • Bottom spray coating system

  • Tangent spray rotor system for powder layering, pelletting, coating

  • Intelligent control system

  • 2 bar shock resistant as standard

  • Different spray nozzles available for different applications and preferences



VPL Main Parameter (For Reference)
Specification
Model Name
Specification
VPL-5/10
VPL-15/30
VPL-30/60
VPL-60/120
VPL-100/200
Material Container
Volume (L)
45
100
220
420
670
Dimension (mm)
500
900
1200
1400
1600
Capacity (Top Spray) kg/batch
10
30
60
120
200
Capacity (Bottom, Tangent Spray) kg/batch
5
15
30
60
100
Steam
Pressure (Mpa)
0.4-0.6
Steam flow (kg/h)
50
100
160
240
320

Compression air
Pressure (Mpa)
0.6
Steam flow (m3/min)
0.6
0.6
0.9
1.1
2.0
Blower (Kw)
7.5
7.5
11
22
30
Heater (Kw)
21
54
78
108
163
Noise (db)
less than 75 db

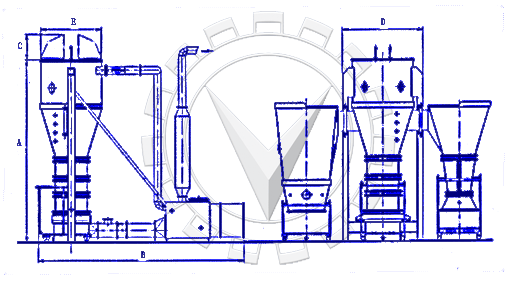

Tower Dimension (mm)
A
2900
3200
3900
4300
4800
B
1280
1760
2310
3520
3750
C
2300
3460
4200
4510
4860
D
900
1320
1420
1640
2000
E
500
1000
1200
1400
1600
