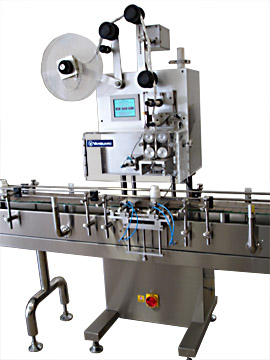

  VSZ-3 AUTOMATIC DESICCANT INSERTER

General Description:

Our VSZ-3 Desiccant Inserter is suitable for all type of bottles, bottle height, size and cap diameter can be--- adjusted-- no change parts are needed! Desiccant rolls are to be mounted on the comb web.  Desiccants are detected by BANNER Fiber Optical-Electronic Sensors as they are measured, cut and inserted into the container automatically. It equipped with HMI (Human Machine Interface) and Color Screen Panel for ease of operation. It has a compact design with built-in Plexiglas and safety interlocks.

2 Units required for the Hi-Speed Bottling Line

Vanguard Pharmaceutical Machinery, Automatic Desiccant Inserter



Features:
*  High quality All Stainless Steel Construction to meet the cGMP Standard.
*  Automatic lifting system for adjusting different bottle heights.
*  Multiple desiccants inserting without additional change parts.
*  Memory capacity to record 10 job settings.
*  Conveyor backlog detection for automatic operation.

Note: Model VSZ-3 Desiccant Inserter does not come with the conveyor .

V
 Model Name:  VSZ-3 Desiccant Inserter
 Capacity based on dual heads:  120 pcs/ min (single insertion)
 80 pcs/ min (double insertion)
 50 pcs/ min (triple insertion)
 Bottle Diameter  25mm ~ 110mm
 Bottle Opening Min  25mm
 Compressed Air Pressure  85 psi
 Machine Dimensions  43 x 38 x 75 (1110 x 975 x 1910 mm)
 Machine Weight

 490 lbs.
