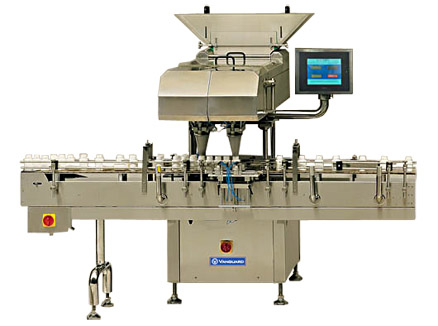

VSL-16 Automatic Electronic Tablet/Capsule Counter

Model VSL-16 Counter is suitable for counting hard gelatin capsules, softgels, tablets, round pills and other solid materials. Each unit has 16 channels with dual nozzles and equipped with Honeywell's Intelligent Sensor Eyes, which has a total of 176 sensor eyes for 100% counting accuracy. The counter has three-stage vibrations to infeed tablets or capsules; vibrating frequency adjustable for quick and stable infeeding. Bottles are positioned and changed by air cylinder to ensure accuracy positioning prior to filling to avoid spillage.  Also featuring slightly diving nozzles and lock bottles into placed prior to filling.

Features:

Japan Made HMI Touch Screen Control Technology & Color Touch Screen Panel for reliability compares to PC Boards.
Suitable for counting any sizes and shapes of tablets and capsules w/o changing parts.
Sensor Control Double Rail Conveyor for Double Counting & Filling.
The products dropped by two-stage vibration and dedusting system without scratch to the tablets
  or capsules, which is conformed to the cGMP standards.
16 Counting Channels pass over 3 powered vibratory units. Each individual channel is
  has 11 product sensors (Made in USA) to count each product in free fall and with a special
  "dust" compensator to assure counting accuracy. It accurately senses all shapes and sizes of
  products, including all shapes and sizes of tablets, capsules, caplets, softgels and clear softgels.

Accurate counting system, No bottle—No fill!.
Excellent after sales service support.

Available onsite integrations, commissioning and
  training worldwide!

Vanguard Pharmaceutical Machinery, Automatic Tablet/Capsule Counter and Filler
0

Technical Parameters

Number of Counting Channels: 16
Production Output: Up to 65 bottles/min
Product Specification: Tablet Diameter 5 ~ 22mm;
Capsule #00 ~ 5
Single Bottle Capacity: 15~10000 pcs./min.
Max Speed: 16,000 pcs/min. or up to 65 bottles/min.
Power: 220V, 60Hz, 3-PH, NEMA Rated or as required
Weight: Approx. 1000 Kg
Dimension: 1980 x 1870 x 1740 or  78" x 74" x 68"
