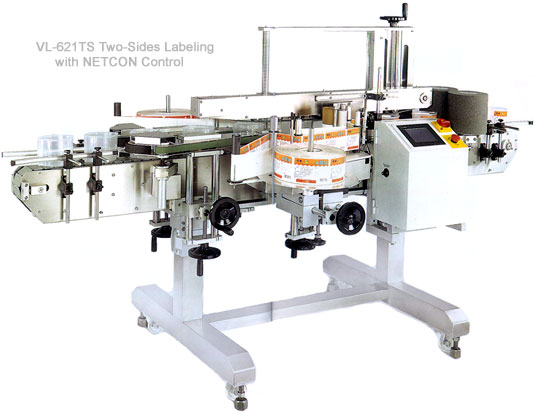

VL-611OS & VL-621TS
Side labeling series suitable for a variety shape of products to one side or two-side labeling. With newest NETCON control system, digital display for easy setting. High speed & accuracy labeling. With adjustable guide rail to meet different shapes of products, and hand wheel to adjust applicator. Unoccupied space of foot-stand with moveable wheel, available to operate as an independent machine or contact with other in-line machines.



 Model

VL-611OS

VL-621TS

 Power Source

 AC 110V/220V 50Hz/60Hz Single Phase

 Power Consumption

840W

900W

 Control System

NETCON

 Speed Control

8 Levels Selection

 Conveyor Speed

0 ~ 42m/Minute

 Driver

Stepper Motor Drived

 Bottle Height  Max: 300mm (11.81')  (Can be set for user)
 Conveyor Width

Standard 110mm(4.33") (Can be set for user's width)

 Label Length

Min: 15mm (0.59")   Max: 300mm (11.81")

 Label Reel Inner

46mm (1.81") or 76mm (2.99")

 Label Reel Outer

Max: 375mm (14.76")

 Space Between Label Min: 3mm (0.59'') or more
 Labeling Speed 42m/(Container Length + 1cm Distance) or (Label Length + 1cm Distance)
 Air  40 ~ 80psi (For optional printer equipment)
