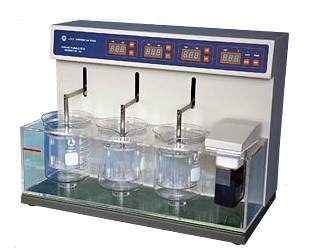

LIJ Disintegration Tester Series

Model LIJ Disintegration Tester Series are the latest development and production of our company, which is the requisite instrument in detecting disintegration of solid dosage products. The design and technical specs of these testers reached or surpassed the advanced level of this kind of instrument in the world. All our lab instruments are engineered and built in according to USP Specifications.

Features include:

Disintegration series used a MPU to control all operations. The bath liquid can achieve an even temperature.
Each test station is driven independently. It stops running at the end of a test.
All components are selected of high quality brands.
It can be operated conveniently by using keys. Its measurement results are displayed by LED.
High quality designed and ruggedly built to meet the USP Codes.

Model	LIJ-1	LIJ-2	LIJ-3
Nacelles	1	2	3
Nacelle glass tubes	6
Vol. of Beaker	1000 ml
Nacelle Stroke Frequency	29 ~ 32 /min
Nacelle Stroke Distance	55 1 mm
Temp. Range	Ambient to +45 C
Automatic Temp. Accuracy	0.5 C
Power of the Heater	500W
Continuous Work	> 24 hours
Power	110V, 60Hz, 1-Ph, 600W or as required
Dimension (L x W x H)	260 x 300 x420 mm³	400 x 300 x 420 mm³	560 x 300 420 mm³
Weight	11kg (24lbs)	16kg (35lbs)	22kg (49lbs)
