General
KDF-2 is a new semi-automatic capsule filling machine which is an improved machine from type 8 filling machine.
This improvement results in faster production, meeting G.M.P. requirements, more accurate filling, safer operation, simple maintenance, no noise, easy cleaning and less labor. Only one operator
is required, and operating training can be done in 10 minutes
A special design allows for changing mold for different size capsules within 15 minutes easily, simply, and precisely.
It has an infinite variable speed of filling table with independent power and
a fixed point filling that results in accurate dosage.
|
|
|

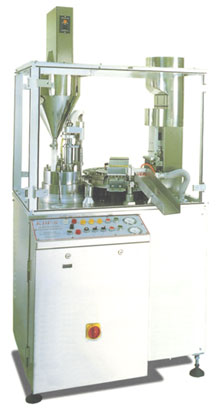

General
KDF-6 has been designed and developed to fill hard gelatin capsules with powder or pellets. It is an extremely durable and reliable machine that fills dosages to the highest accuracy. It can be applicable to the widest range of capsules at all sizes and to all manufacturers and guarantees the integrity of all capsules.
Features:
The housing and surface are covered with stainless steel 304. All contact parts of medical powders are made from a corrosion resistant stainless steel 316.
Parts are made by CNC computer machine. All parts are standardized and easy to substitute.
Capable of filling 6 capsules at a time with operation from 10 stations. Accurate operation for orientation, opening, filling, joining and ejecting of the capsules.
Compulsory spiral feeding in the powder hopper to ensure powder feeding and filling.
Dual capsule-opening design to ensure all capsules are opened.
Electrical impact protection device to prevent any further damage. The machine will stop automatically in the event of collision.
Safety sensing system to shut the machine down automatically in the event of problems when no capsules, no powder, door is opened, and abnormal load for the machine are detected.
Automatic vacuum removal of the air in the dosing tube to give more accurate weight of the filled capsules.
Exclusive dosing tube system, temperature of the powder will not rise during the filling process.
Adjustable compression piston in dosing tube to adjust the powder volume without changing parts.
Easy to change the molds without alignment. A person without experience can change the molds within 30 minutes.
|
|
 |
| Capacity |
Max. 40,000 Pcs/Hr |
| Power
supply |
AC
220/380V, 50/60Hz 3 Phase |
| Power consumption |
Machine 1.1Kw
Suction 1.0Kw
Vacuum 1.5Kw |
| Packing
size |
165 x
167 x 125 (H) cm |
| Net weight |
Approx. 1,000kgs
(2,205lbs) |
| Gross
weight |
Approx.
1,350kgs (2,976lbs) |
|
