Soft-Gel Size and shape Capsule

Production Process

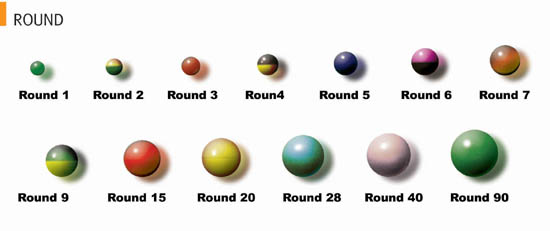

 No. 1 2 3 4 5 6 7 9 15 20 28 40 90
 Minims 0.75~1.00 1.2~2.0 2.2~3.0 2.8~4.0 3.2~5.0 4.6~6.0 5.0~7.0 7.0~9.0 12.0~15.0 15.0~20.0 22.0~30.0 32.0~41.0 70.0~80.0
 CC

0.046~ 0.062

0.074~ 0.0124

0.136~ 0.185

0.172~ 0.246 0.197~ 0.308 0.283~ 0.370 0.308~ 0.431 0.431~ 0.554 0.740~ 0.925 0.925~ 1.230 1.355~ 1.848 1.971~ 2.526 4.312~ 4.928




 No. 2 3 4 5 6 7 8.5 10 12 16 20 30 40 60 65 80
 Minims 1.5~2.3 2.4~3.0 3.1~4.0 4.3~5.0 5.2~6.0 6.2~7.5 7.0~8.5 7.5~10.0 8.3~12.0 12.4~16.0 17.0~20.0 21.0~30.0 30.0~40.0 41.0~60.0 50.0~65.0 60.0~80.0
 CC 0.092~ 0.142 0.148~ 0.185 0.191~ 0.246 0.265~ 0.308 0.320~ 0.370 0.382~ 0.462 0.431~ 0.524 0.462~ 0.616 0.511~ 0.739 0.764~ 0.986 1.407~ 1.232 1.294~ 1.848 1.848~ 2.464 2.526~ 3.696 3.080~ 4.030 3.696~ 4.928

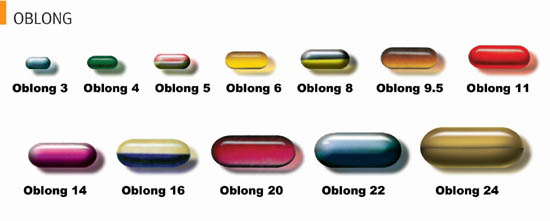

 No. 3 4 5 6 8 9.5 11 14 16 20 20 20
 Minims 2.3~3.0 3.0~4.0 4.0~5.0 5.0~6.0 6.5~8.0 7.5~9.5 10.5~12.5 12.5~14.0 14.0~16.0 16.0~20.00 18.0~22.00 20.0~24.00
 CC 0.142~ 0.185 0.185~ 0.246 0.246~ 0.308 0.308~ 0.370 0.400~ 0.493 0.462~ 0.585 0.647~ 0.752 0.770~ 0.862 0.862~ 0.986 0.986~ 1.232 1.109~ 1.355 1.232~ 1.478

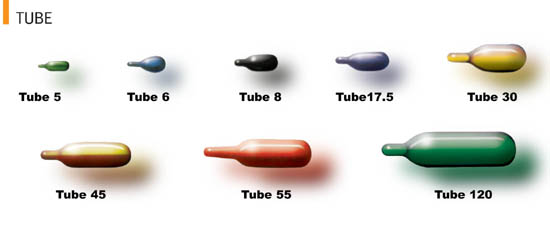

 No. 5 6 8 17.5 30 45 55 120
 Minims 2.5~5.0 5.0~6.0 6.0~8.0 15.0~17.0 27.0~32.0 40.0~45.0 40.0~55.0 90.0~120.0
 Mils 0.154~ 0.308 0.308~ 0.370 0.370~ 0.493 0.924~ 1.407 1.663~ 1.971 2.462~ 2.772 2.464~ 3.388 5.544~ 7.392

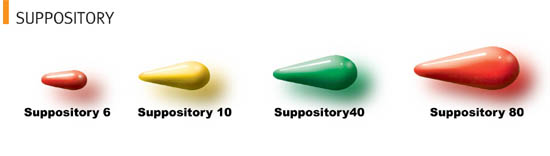

 No. 6 10 40 80
 Minims 5.0~6.0 7.0~10.0 30.0~40.0 62.0~80.0
 Mils 0.308~ 0.370 0.430~ 0.620 1.850~ 2.460 3.819~ 4.928
